Folie 12 von 21
Notizen:

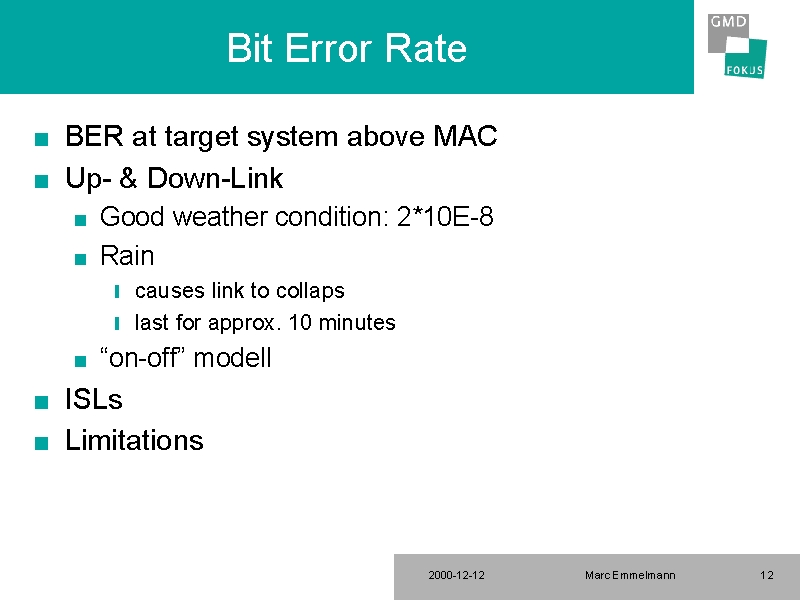

BER
above FEC on MAC level
assume worst case: const. max. BER (target system budget)
Good wheather
packet error rate (=ATM cell): 2*10e-8
Rain
rain > 2.5 m/h causes link to fail
if rain, probability extremely hight that it exceeds 2.5 mm/h
ISLs
currently not considdered
exact parameters to be discussed when ISLs included into simulation
Limitations / in reality:
BER changes continiously with, e.g., slant range
not an a abrupt on-off-model but rather smooth transition
FEC will not switch to „double-slot“ usage for better error correction
