Folie 11 von 21
Notizen:

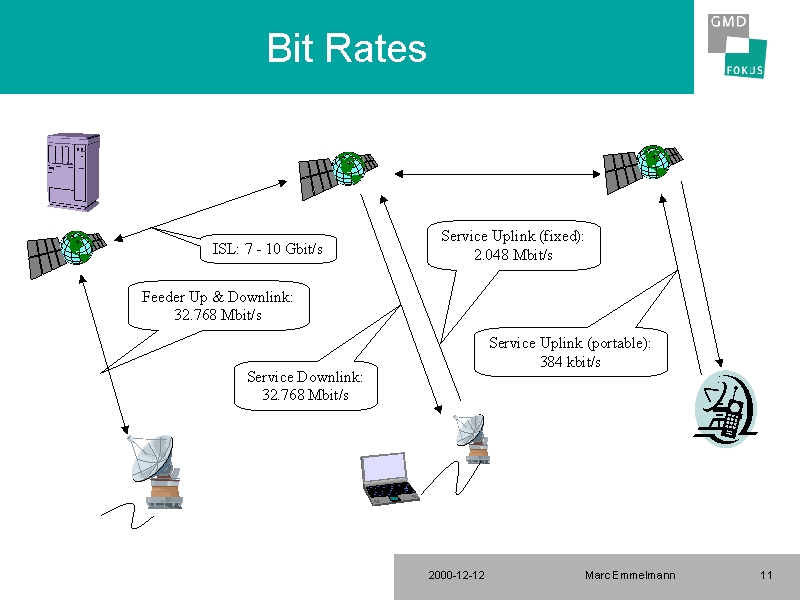

Three kind of “terminals”:
Provider / Control Center with Feeder Link: 32.768 Mbit/s
Portable Terminal: 2.048 Mbit/s
Mobile Terminal: 384 kbit/s
Simulation Assumptions & Restrictions
Channel usage continuous (not in 16 kbit/s steps)
ISLs
not bottleneck; true for “good” routing
delay uncertain (see later slide), depends on routing
included in “final” simulation phase
No reduced throughput due to “double-slot FEC”
Right now: “single-hop” scenarios with different bit rates
