Folie 18 von 21
Notizen:

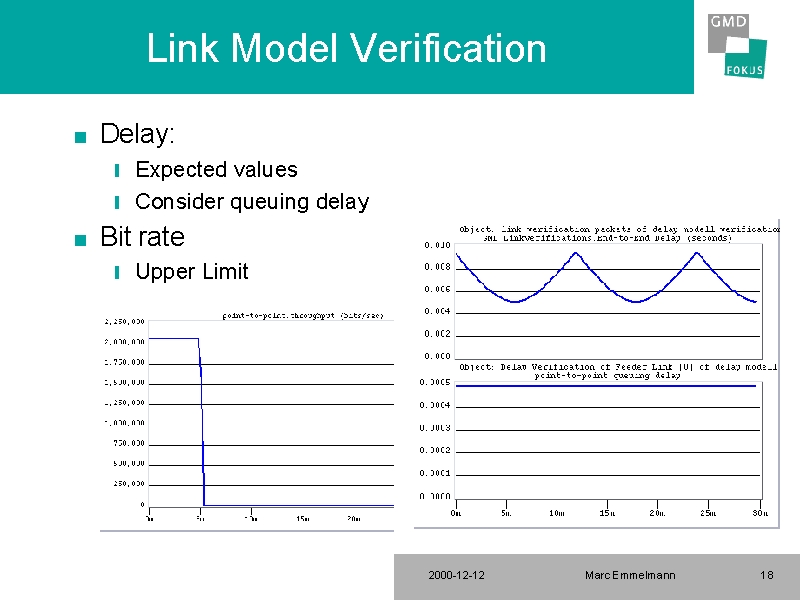

Goal: check simulator‘s propper functioning (not correctness of formulas) Delay:
Scenario:
endlesly transmitting small packets
link not saturated
==> no waiting in link-queue
==> only time to enqueue and dequeue
==> expected values if queuing delay is considered
Bit Rate:
saturate link:
data rate: 64 MB/s
2000-byte-long packets
4096 packets per second
stop sending packets after 10s
2 MB/s link bandwidth (= 128 packets per second)
==> link queue should be flushed after 5 minutes
Probing Stations were „cross-checked“ to verify transmission rates
