Folie 6 von 11
Notizen:

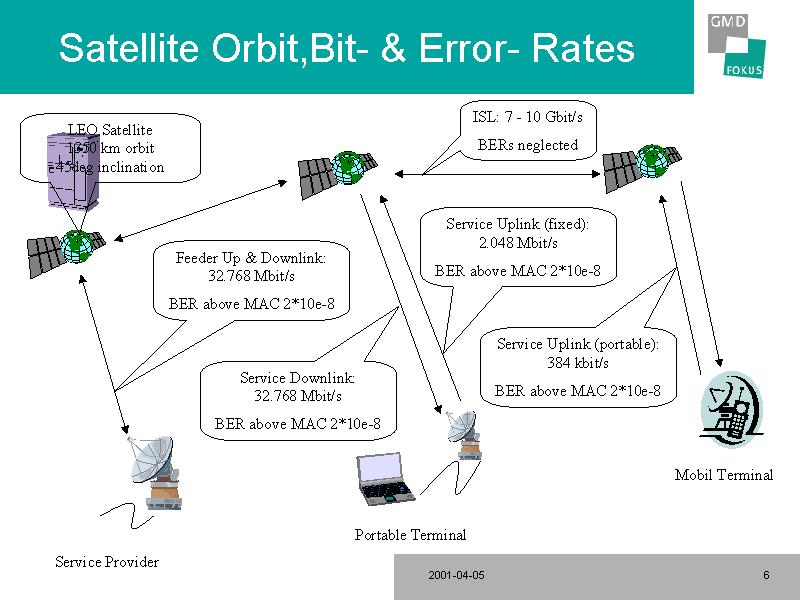

Network Overview: LEO satellite network: orbit hight: 1350 km
permanent line of sight; 20 deg. min. eleavation
Service Provider: E.g.: ISP
Large antennas, fixed position
Portable Terminal: E.g. Notebook
NOT moving during communication
Mobile Terminal: E.g.: Notebook (or handheld)
Medium (or small) antenna, portable
Moving during communication
Downlink: 32.768 Mbit/s for all types of terminal, shared
Uplink: Feeder Link: 32.768 Mbit/s
Portable Terminal: 2.048 Mbit/s
Mobile Terminal: 384 kbit/s
BER: 2*10-8 (above MAC); good wheather
